Big Blade – Floor Mounted Against Wall
A cover for heat pumps that protects and enhances. Registered design, resistant structure against impacts, humidity, dust and UV rays. Also suitable for large outdoor air conditioners. Reduces noise, improves efficiency and blends elegantly into the outdoor environment.
incl. VAT
Before buying: check the correct size
With Big Blade, comparing only the external dimensions of the cover is not enough. Check the actual unit dimensions, feet, pipework, condensate drain, wall distance and the space required for airflow and maintenance.

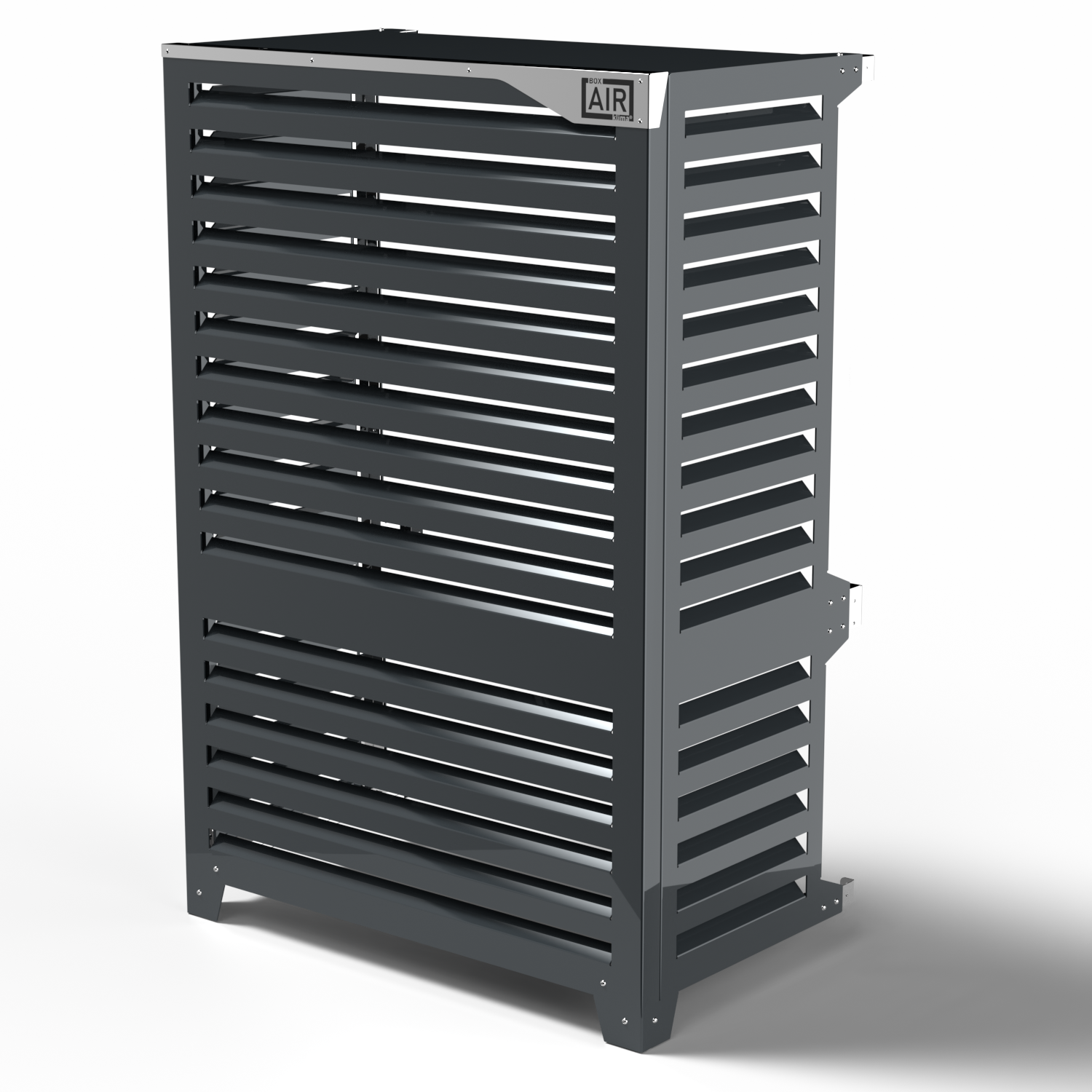

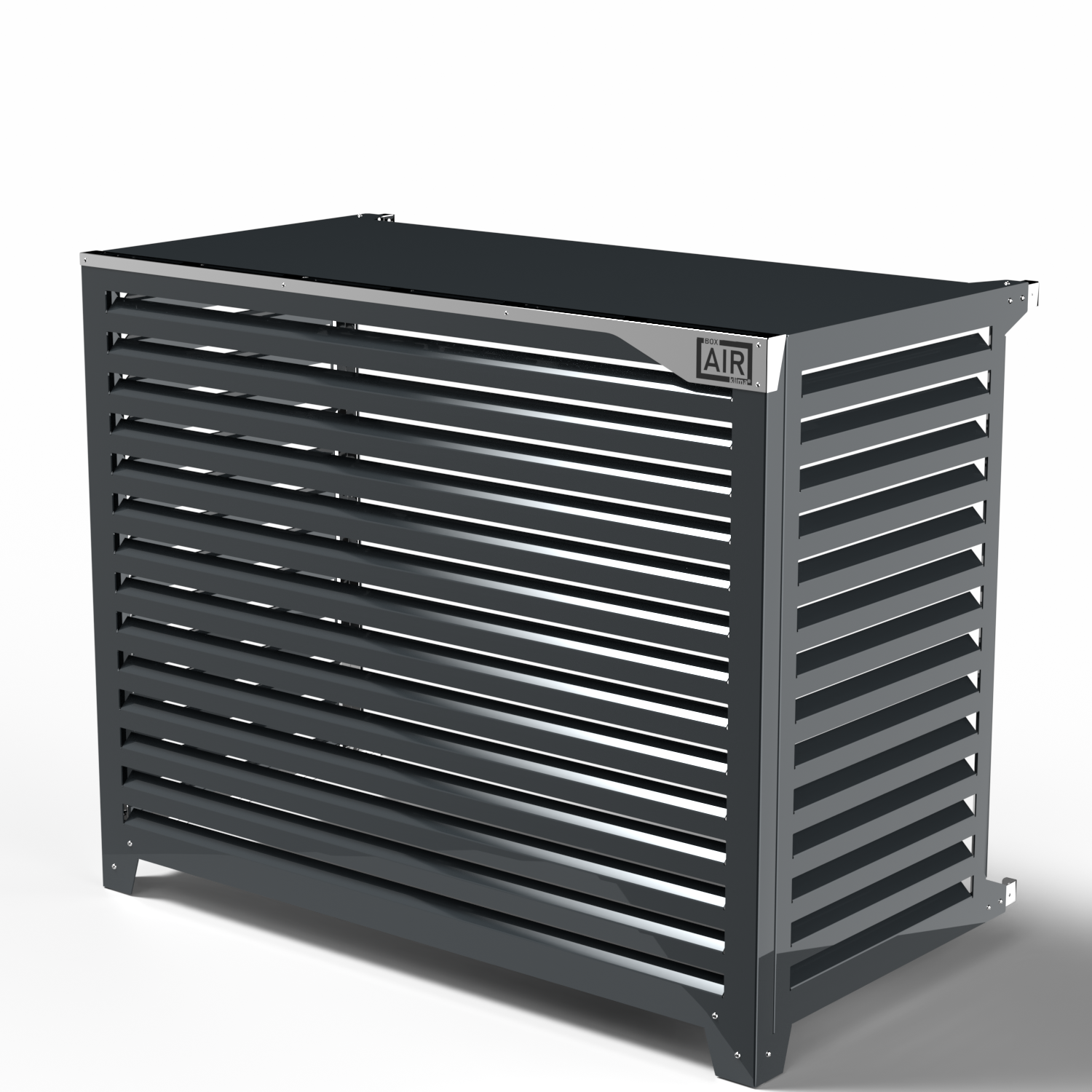

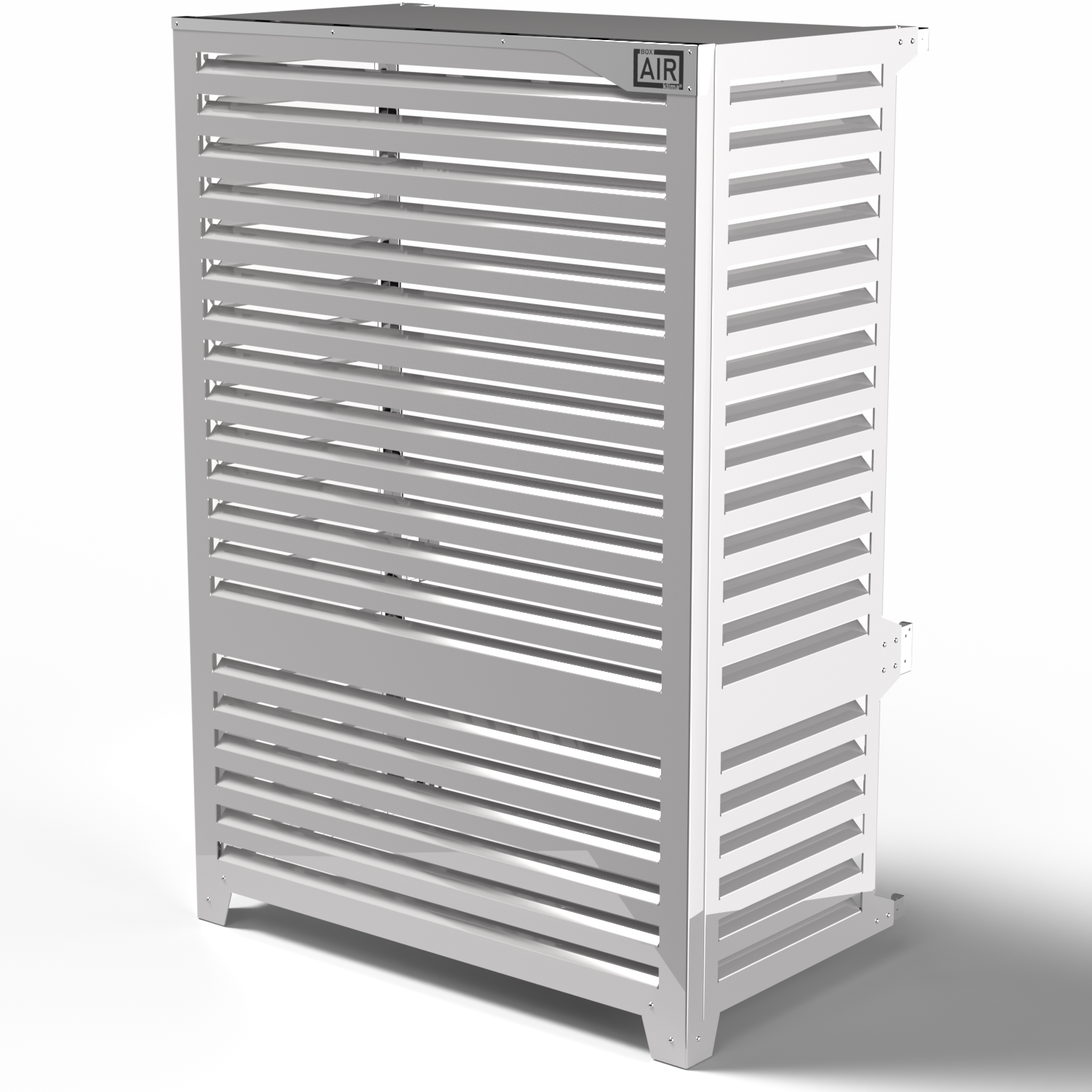

Big Blade floor mounted against the wall
This configuration is designed for large heat pumps and HVAC outdoor units where a standard cover is not enough. The floor-mounted against-wall version combines structural ground support with a wall-adjacent installation while keeping the unit ventilated and serviceable.

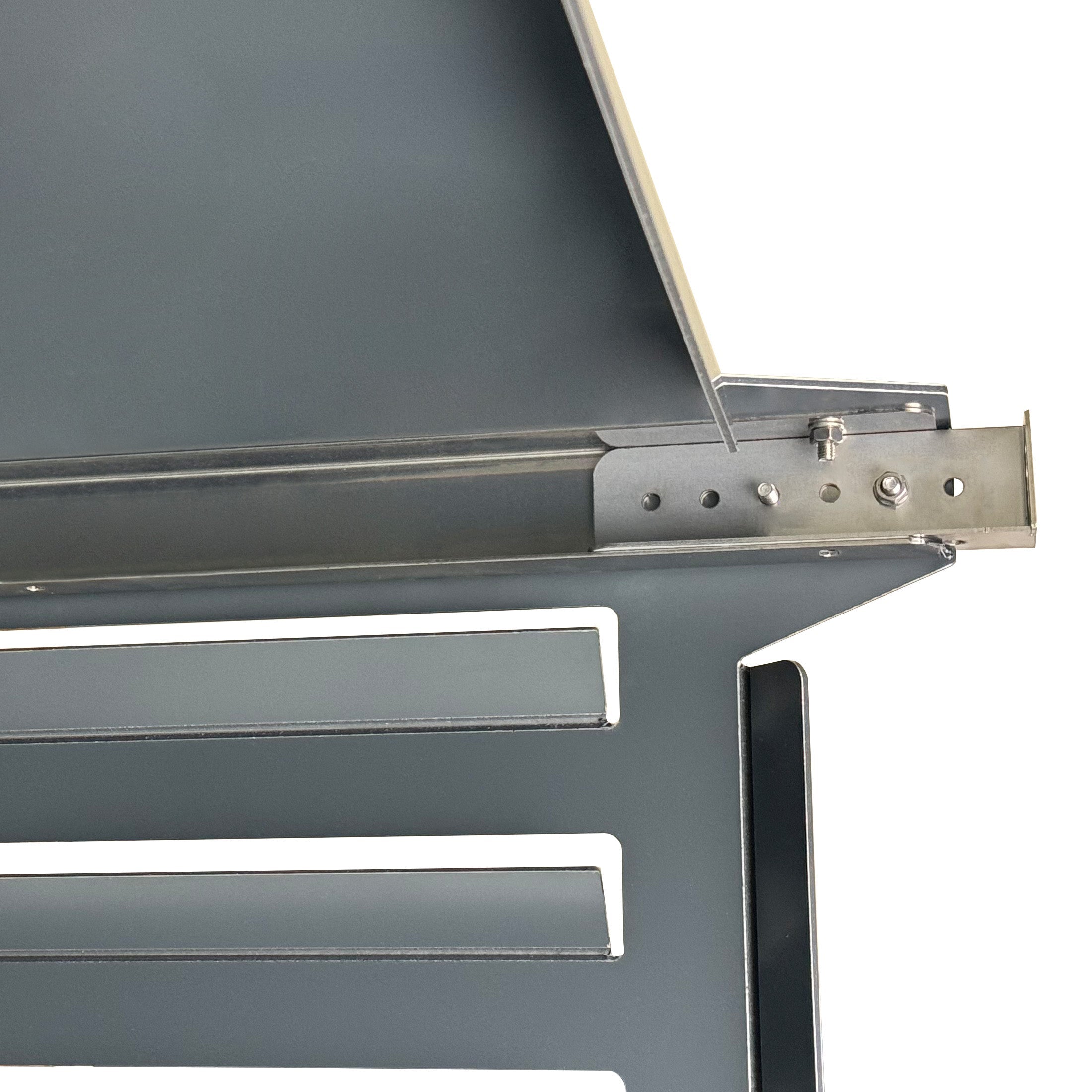

Concealed 316 stainless-steel frame
The load-bearing structure is made from 316 stainless steel and remains hidden from view. Formed outer panels are mechanically clamped to the frame with stainless-steel screws and self-locking nuts. Folds, frame and clamping work together to reduce play and vibration.
3 mm ACP aluminium composite panels
The outer panels are made from 3 mm ACP aluminium composite. They are CNC cut, routed, drilled and formed. The folded geometry increases stiffness and supports repeatable production.
Adjustable louvers and airflow management
The surfaces use manually adjustable louvers from about 0° to 90°. This allows the free airflow area to be adapted to the installation. Size and positioning must always respect the heat-pump manufacturer’s technical clearances.
For selected configurations, an elastomeric airflow-separation system can help limit unwanted recirculation from the discharge zone back toward the intake zone.
Structural floor supports
The feet are structural components. Each support uses a stainless-steel element with a threaded connector and adjustable foot. Depending on the installation, the structure can be anchored to slabs or foundations or used with suitable technical supports.
Maintenance access

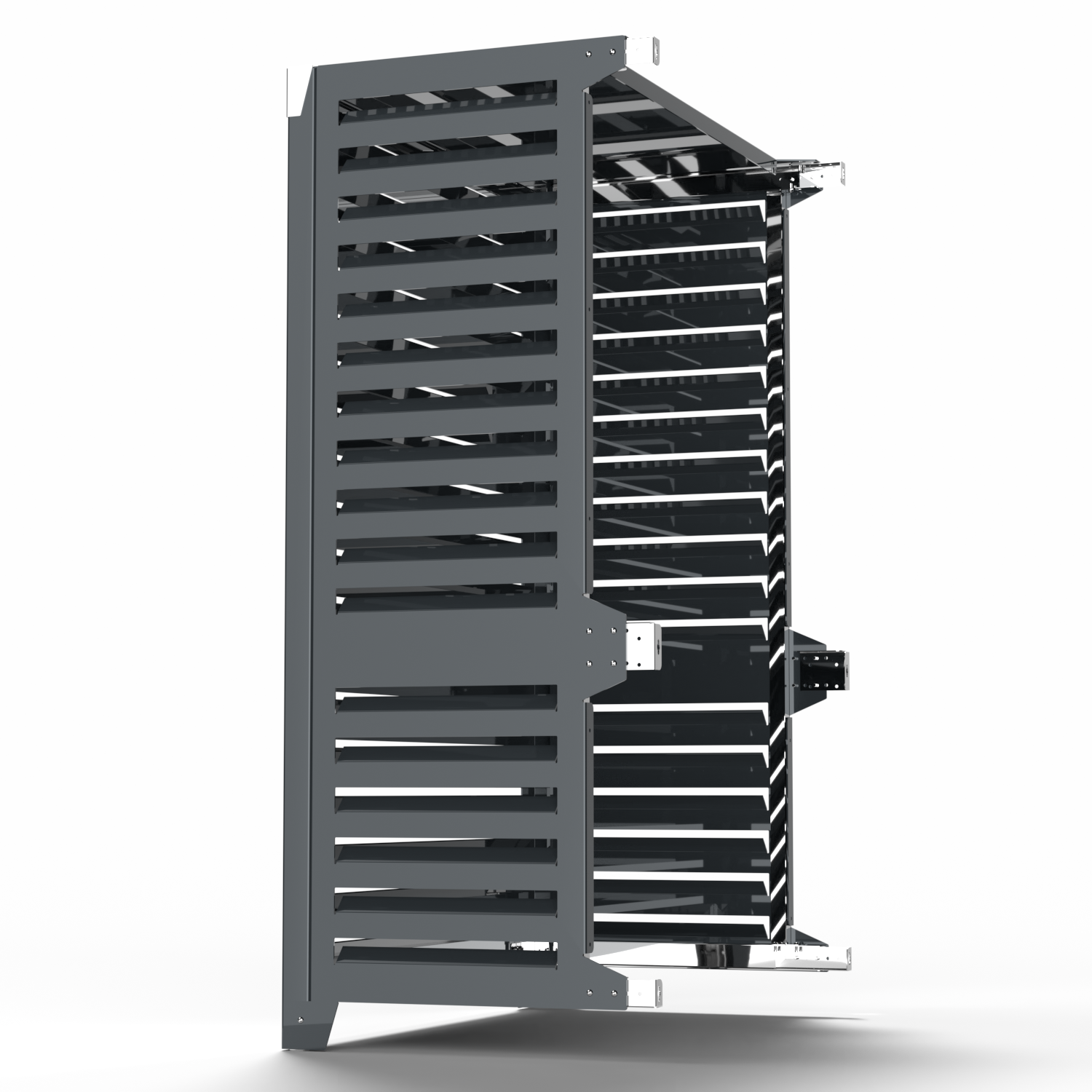

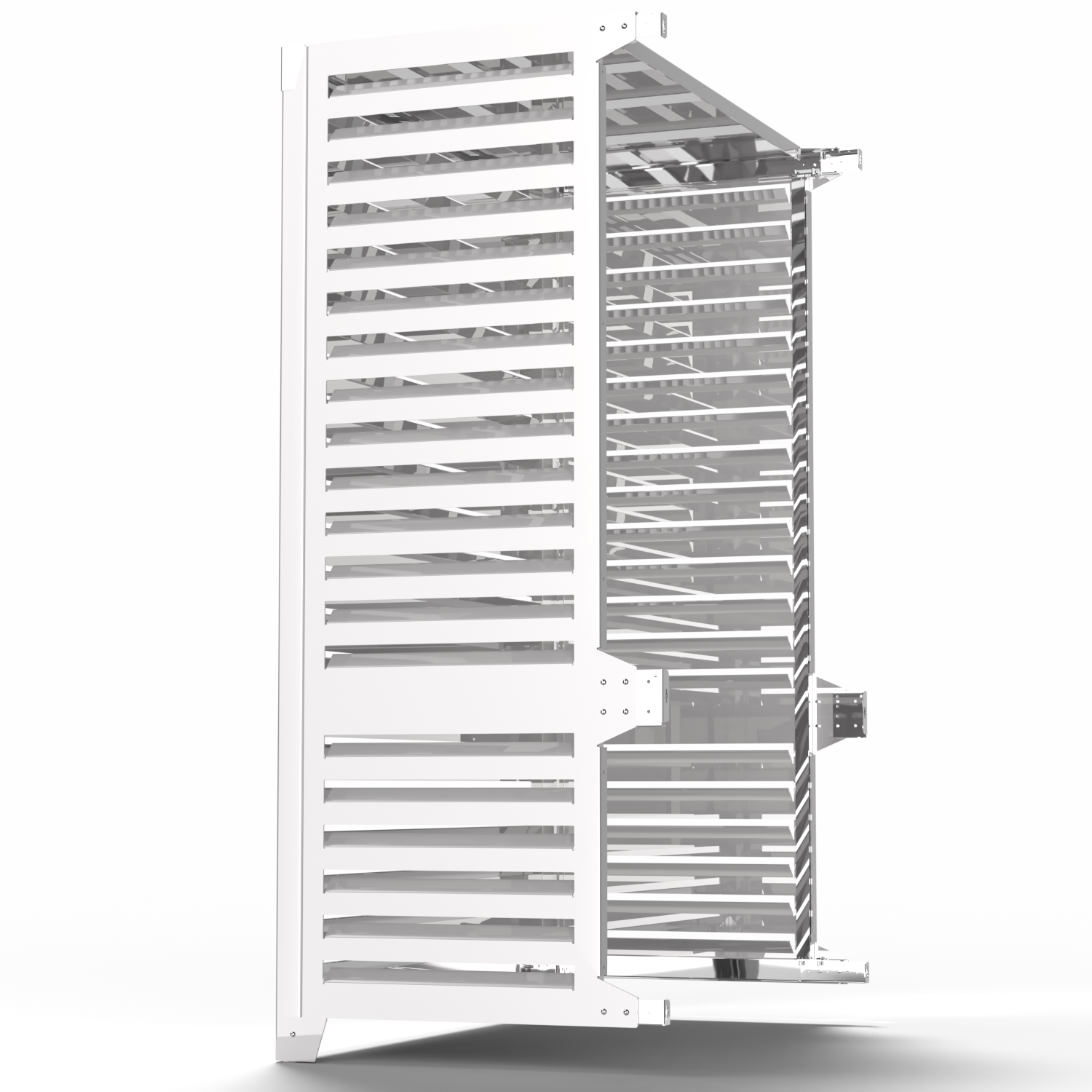

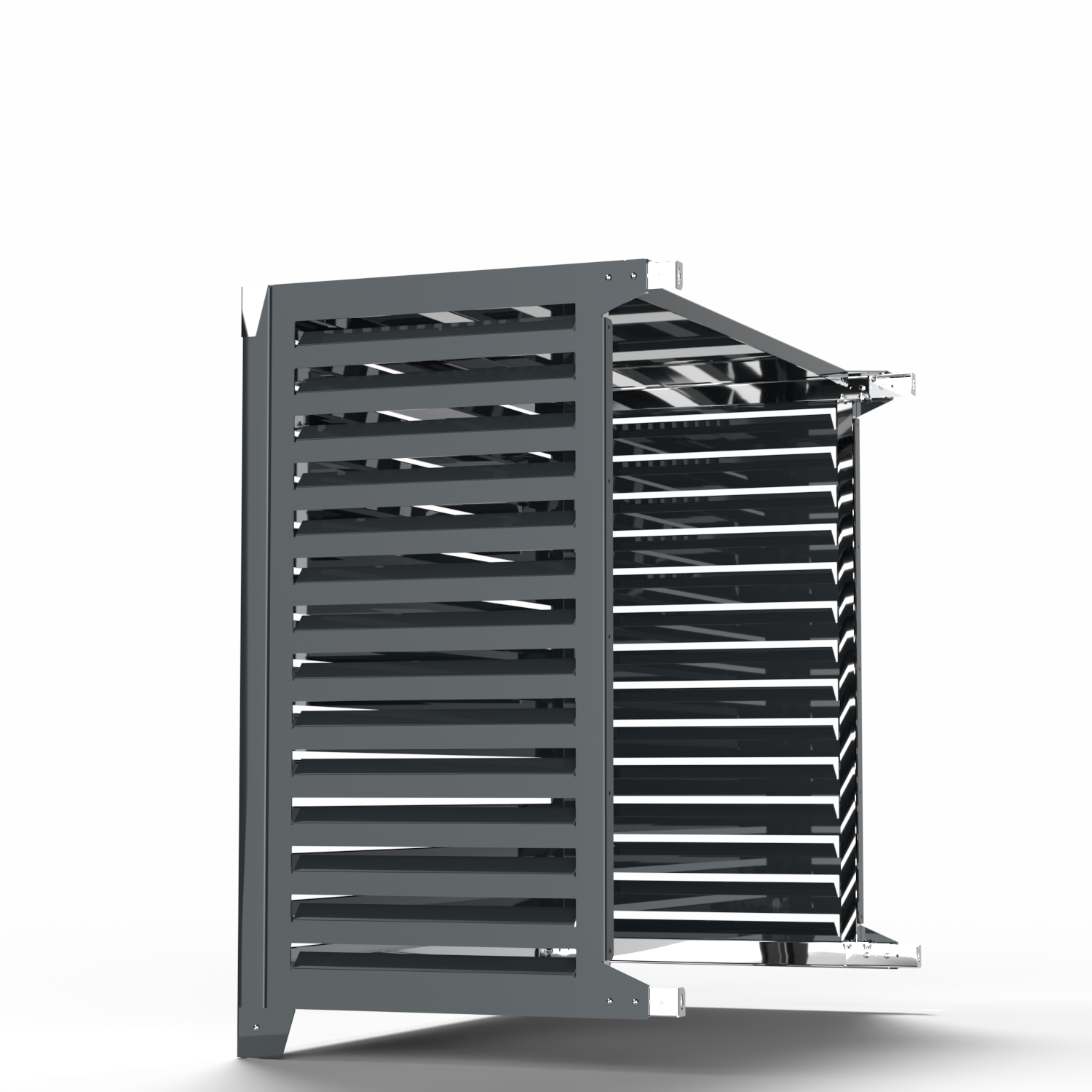

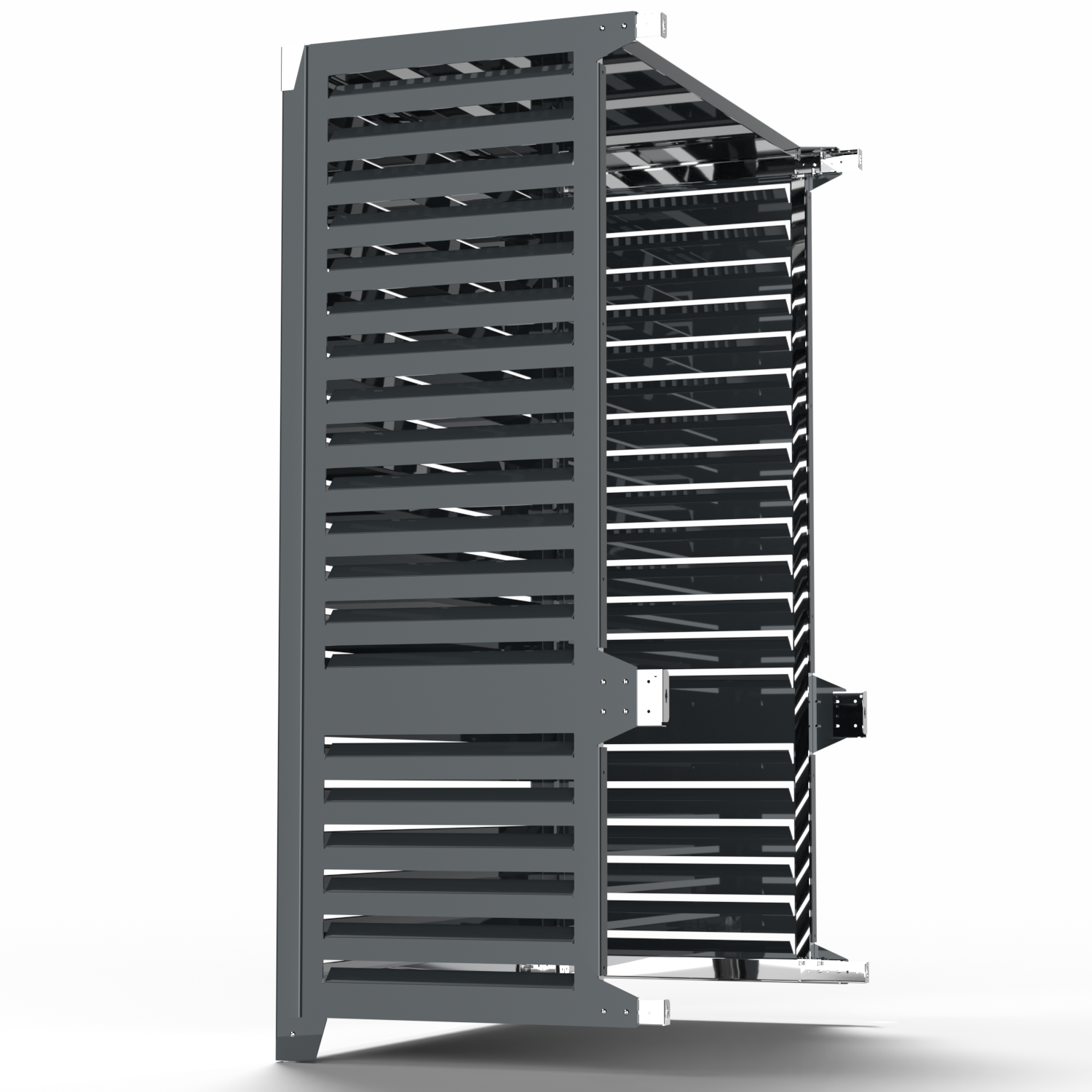

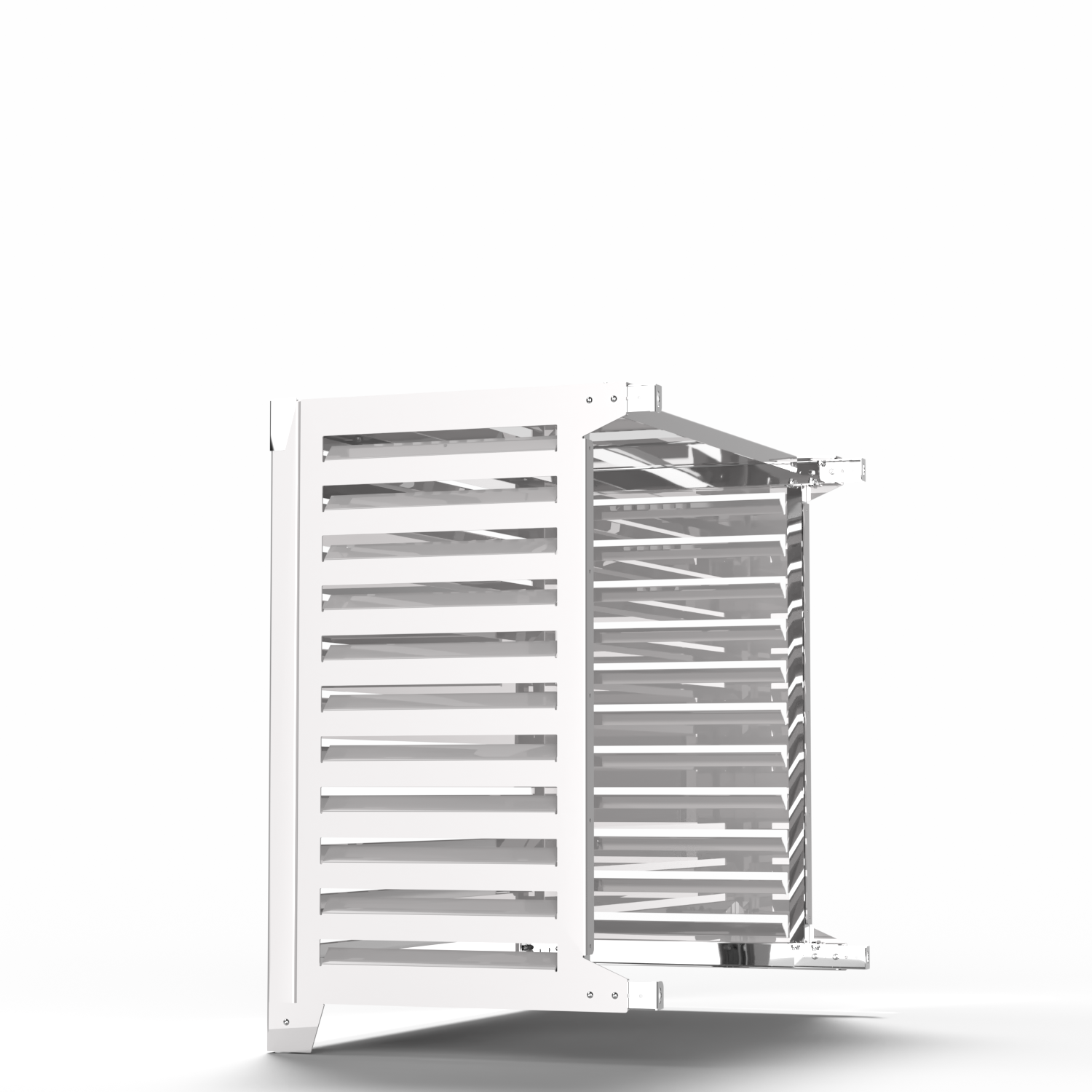

The cover is designed so it can be released from its fixing points and moved away from the unit. Larger versions can use shell or half-shell configurations to maintain full service access.
Protection from direct exposure
Big Blade reduces direct exposure to sun, driving rain, snow, hail, dirt, leaves and light impacts. In coastal areas, the physical barrier and 316 stainless-steel frame also help reduce direct exposure to salt-laden aerosols. It is not presented as a sealed enclosure or a certified safety device.
External cover dimensions
| Model | External dimensions |
|---|---|

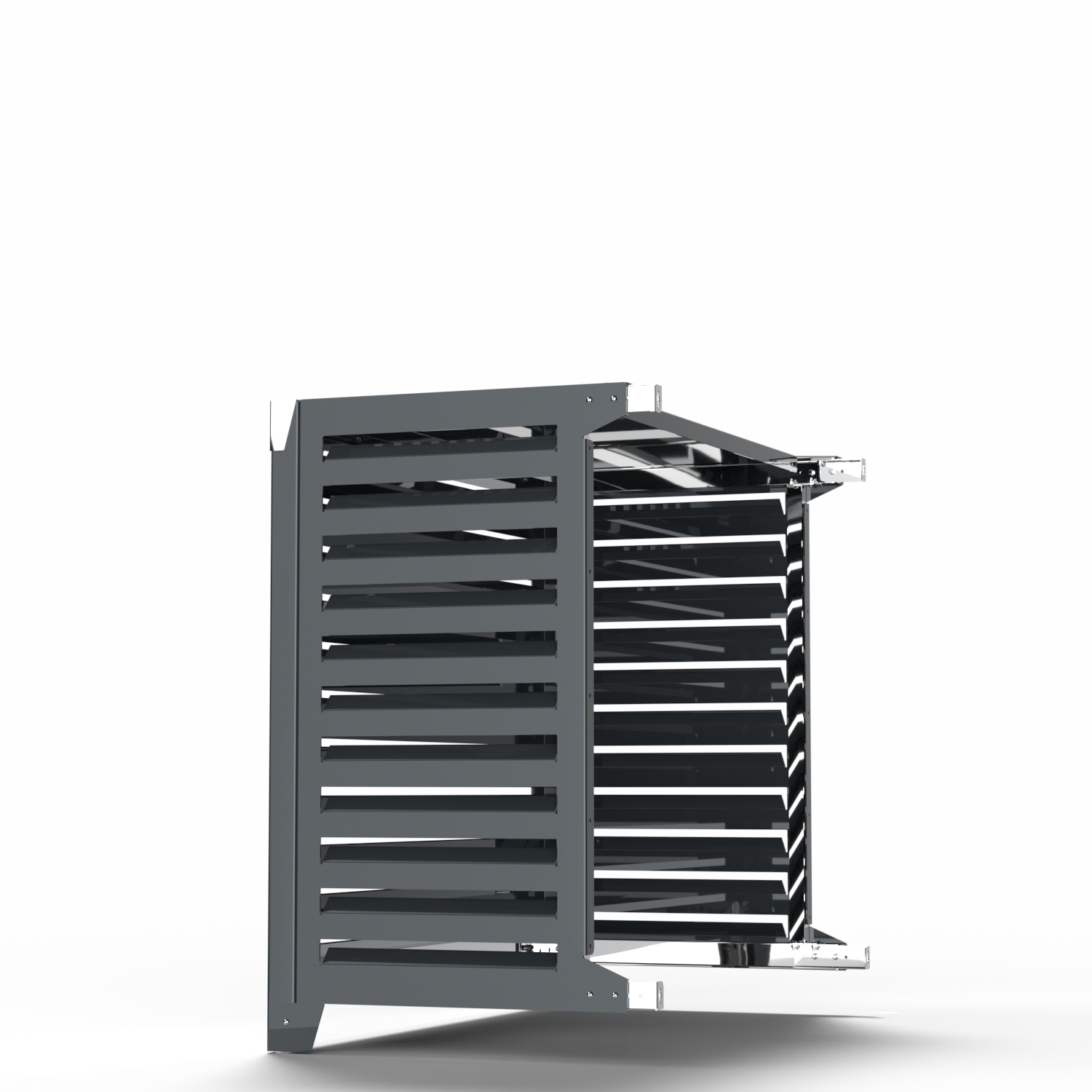

| XL | 107 × 99 × 57–63 cm |

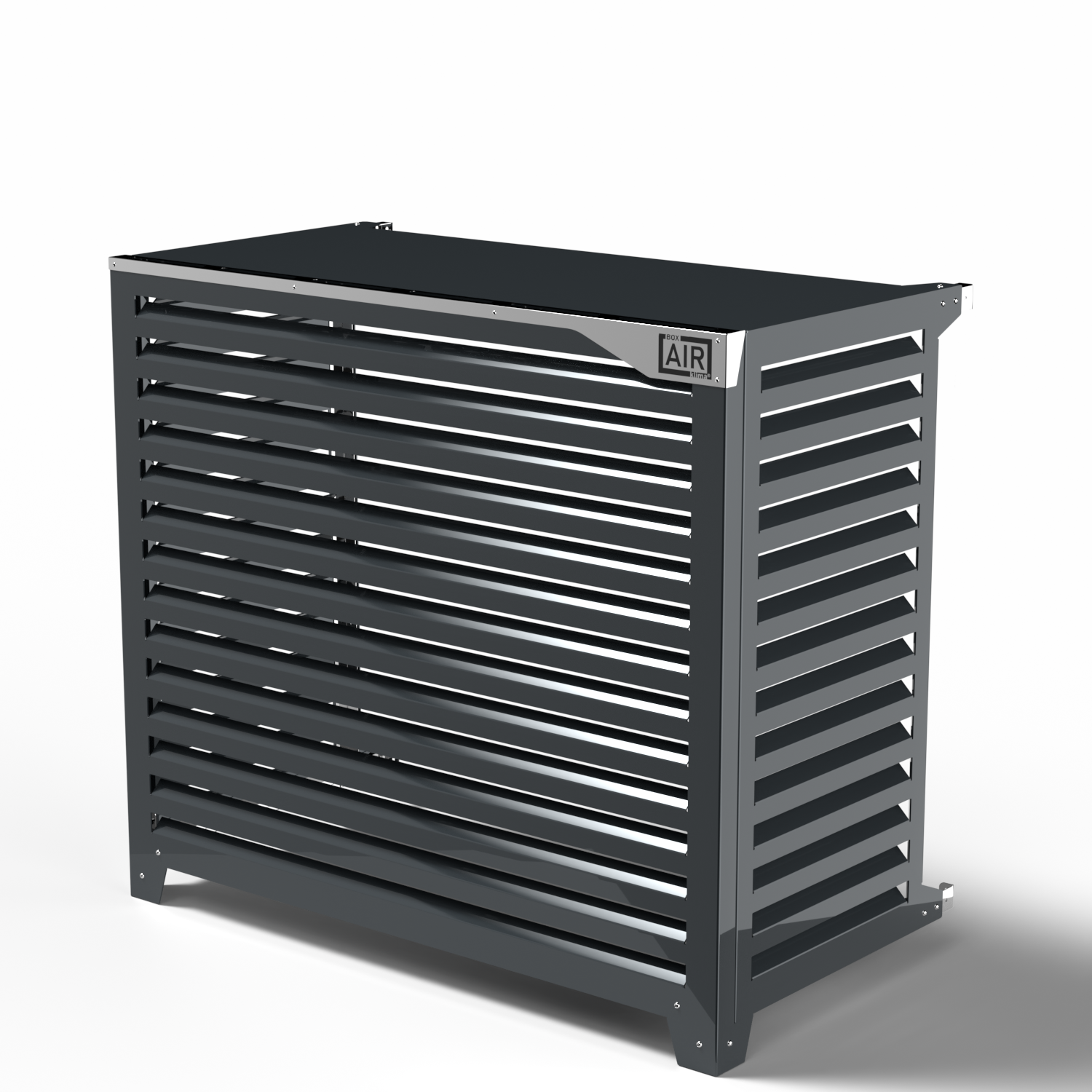

| XXL | 127 × 116 × 64–70 cm |
| 3XL | 142 × 116 × 74–80 cm |
| 5XL | 180 × 153 × 115–121 cm |

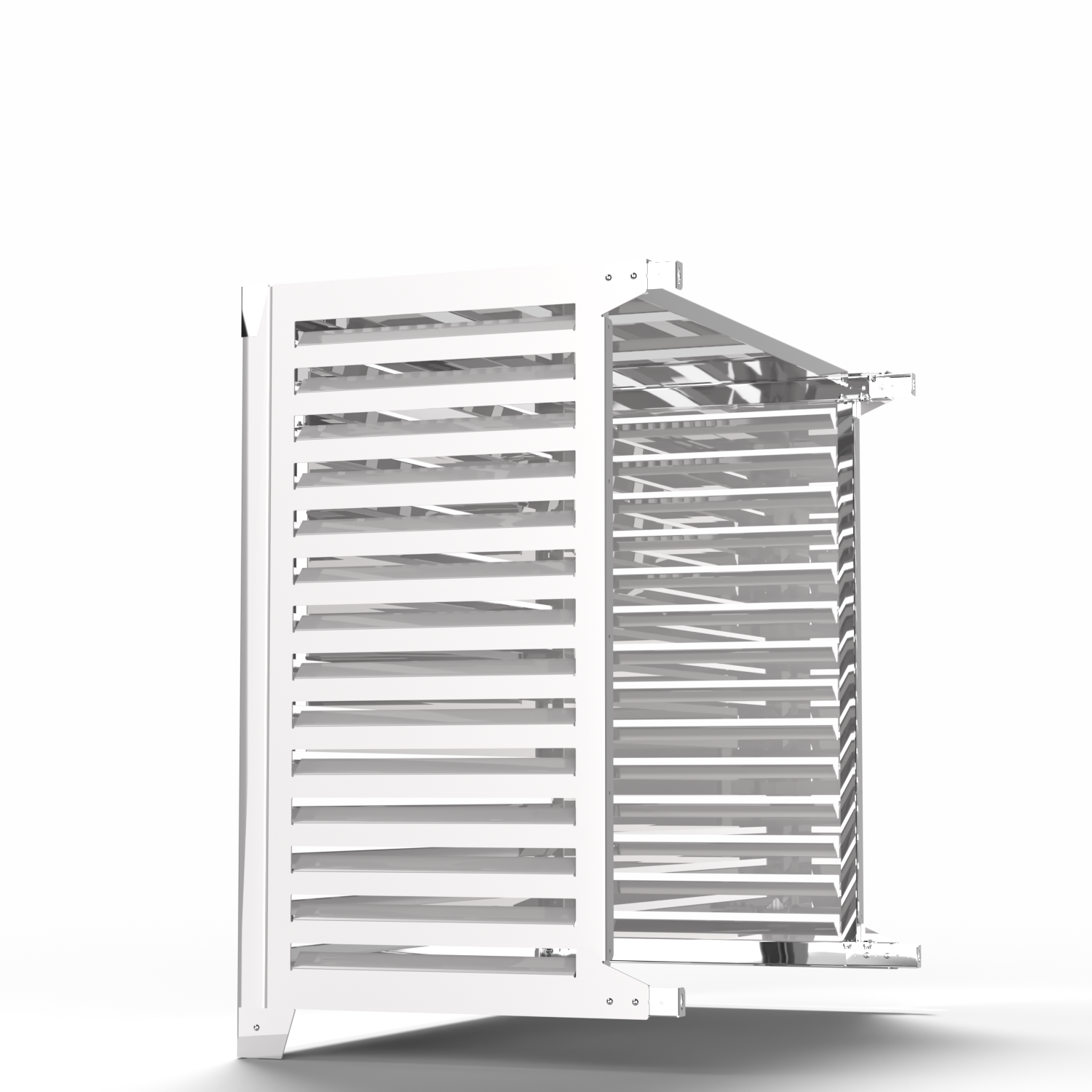

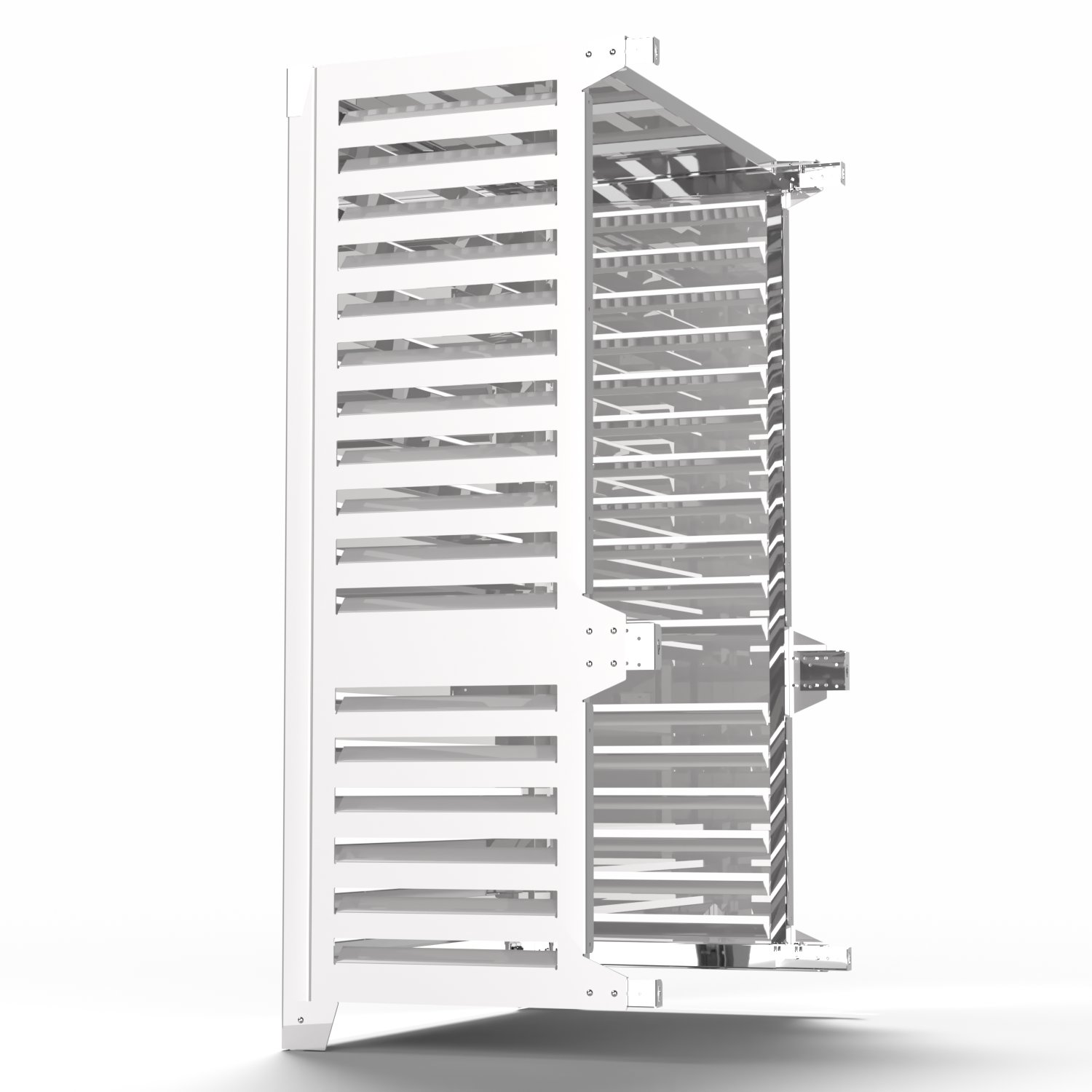

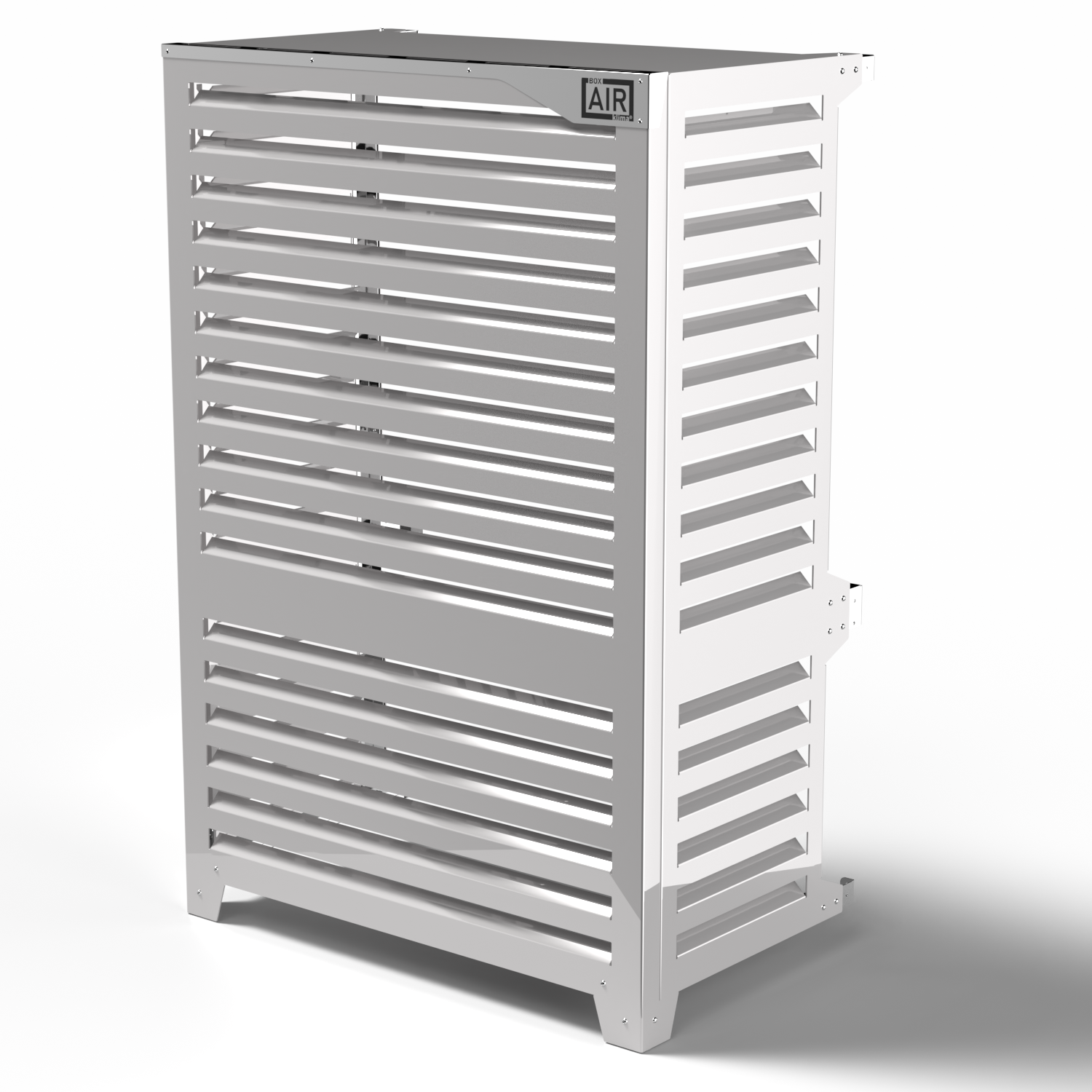

| VL | 97 × 154 × 55–61 cm |

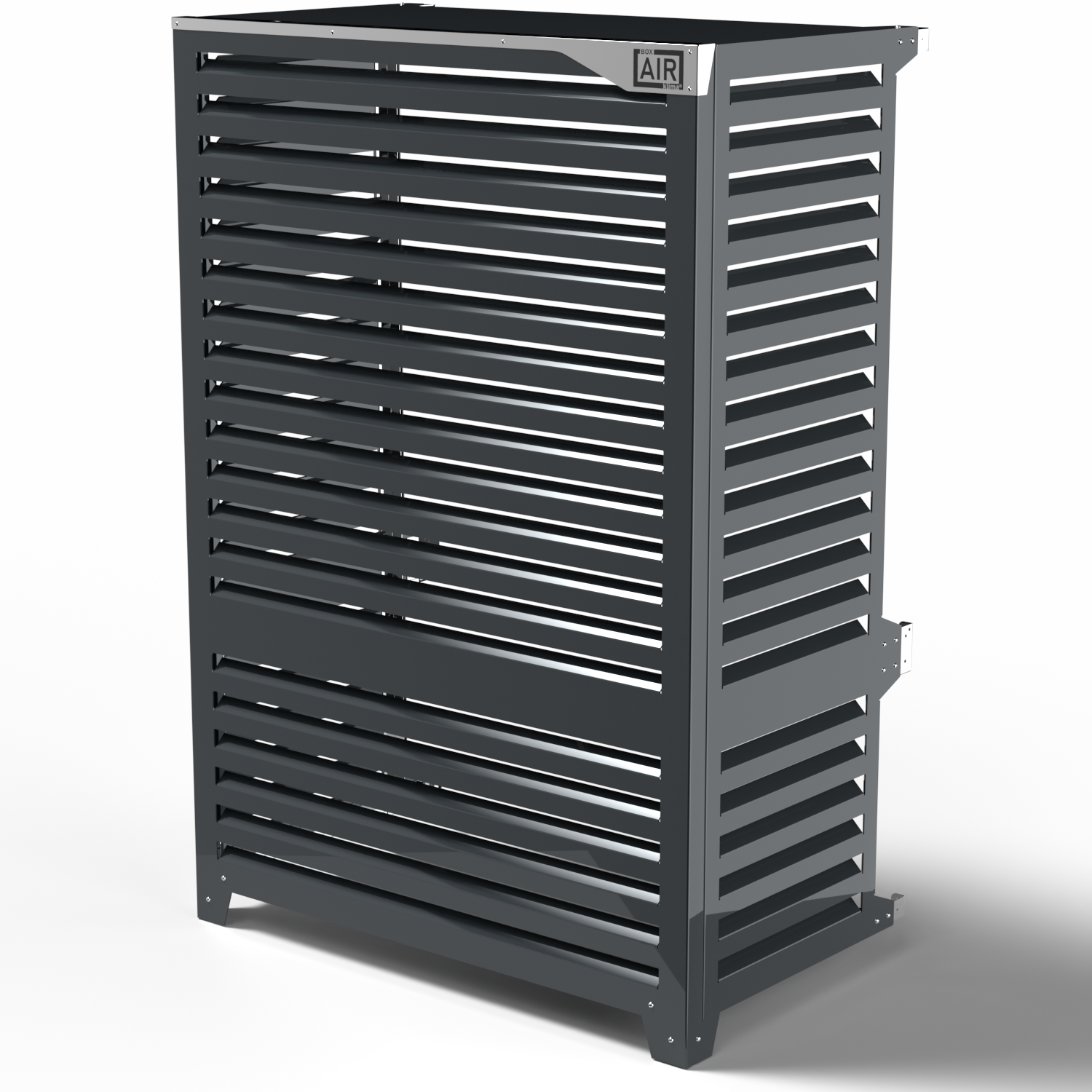

| VXL | 125 × 176 × 64–70 cm |
These are external cover dimensions. Before ordering, verify that the heat pump fits with sufficient technical clearance for airflow, pipework and maintenance.
Custom options
- White and anthracite standard colours.
- Special colours on request.
- Reinforced pipe openings.
- Lower closures for suspended units.
- Rear panels and roof reinforcements on dedicated configurations.
- Multiple or stacked arrangements.
Before ordering
For special installations, send photos plus the unit’s maximum width, height and depth, pipe positions and available space so the correct Big Blade size can be checked before ordering or production.

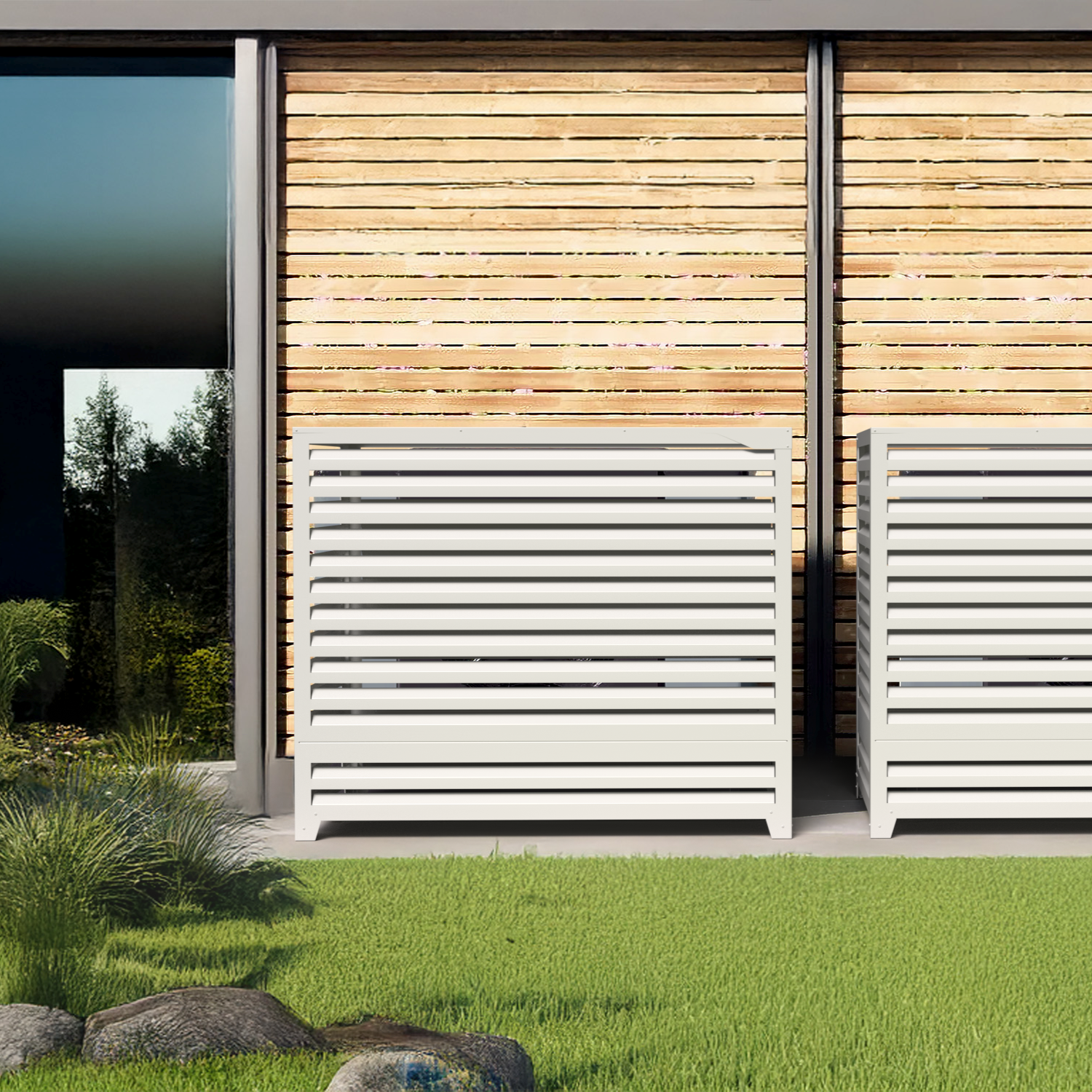

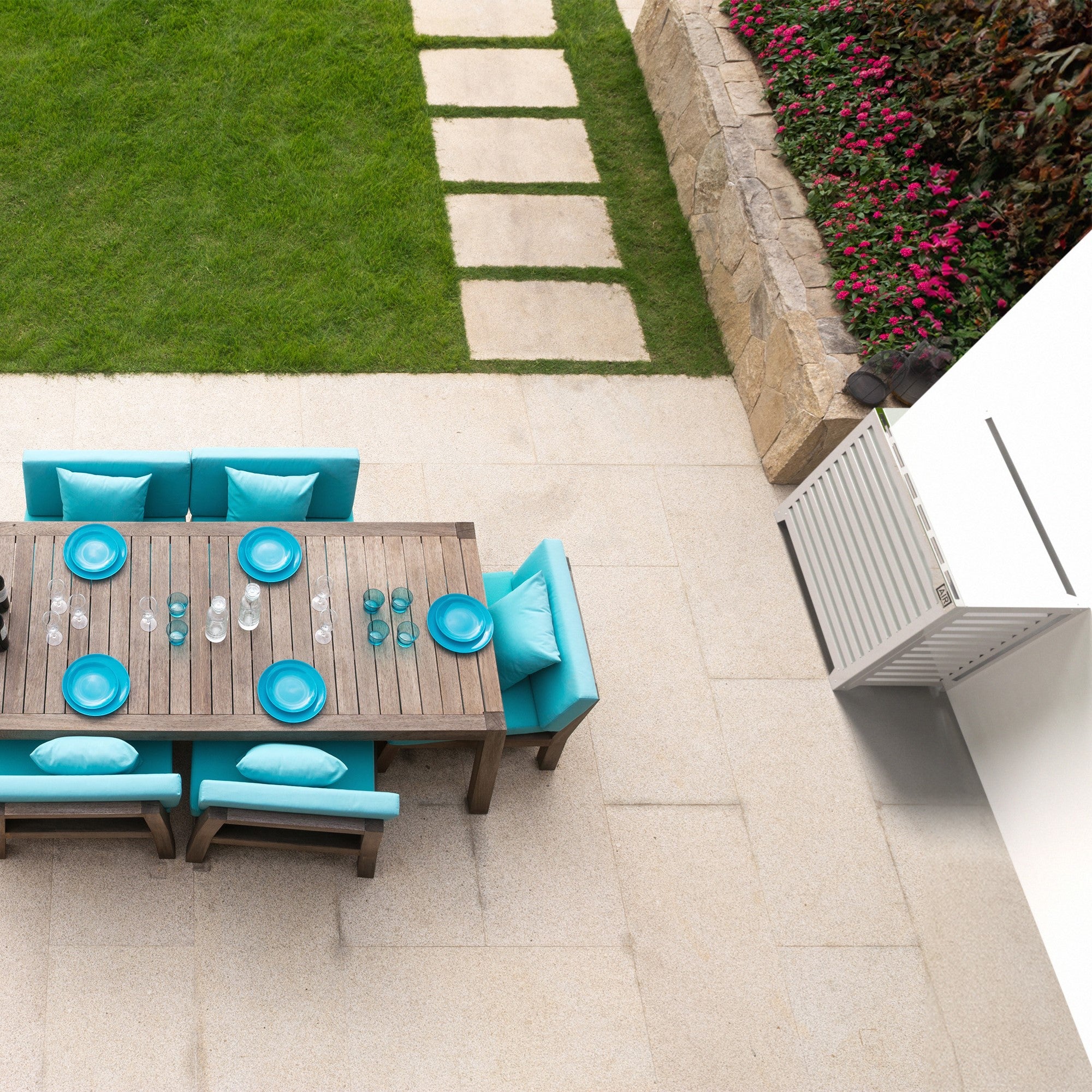

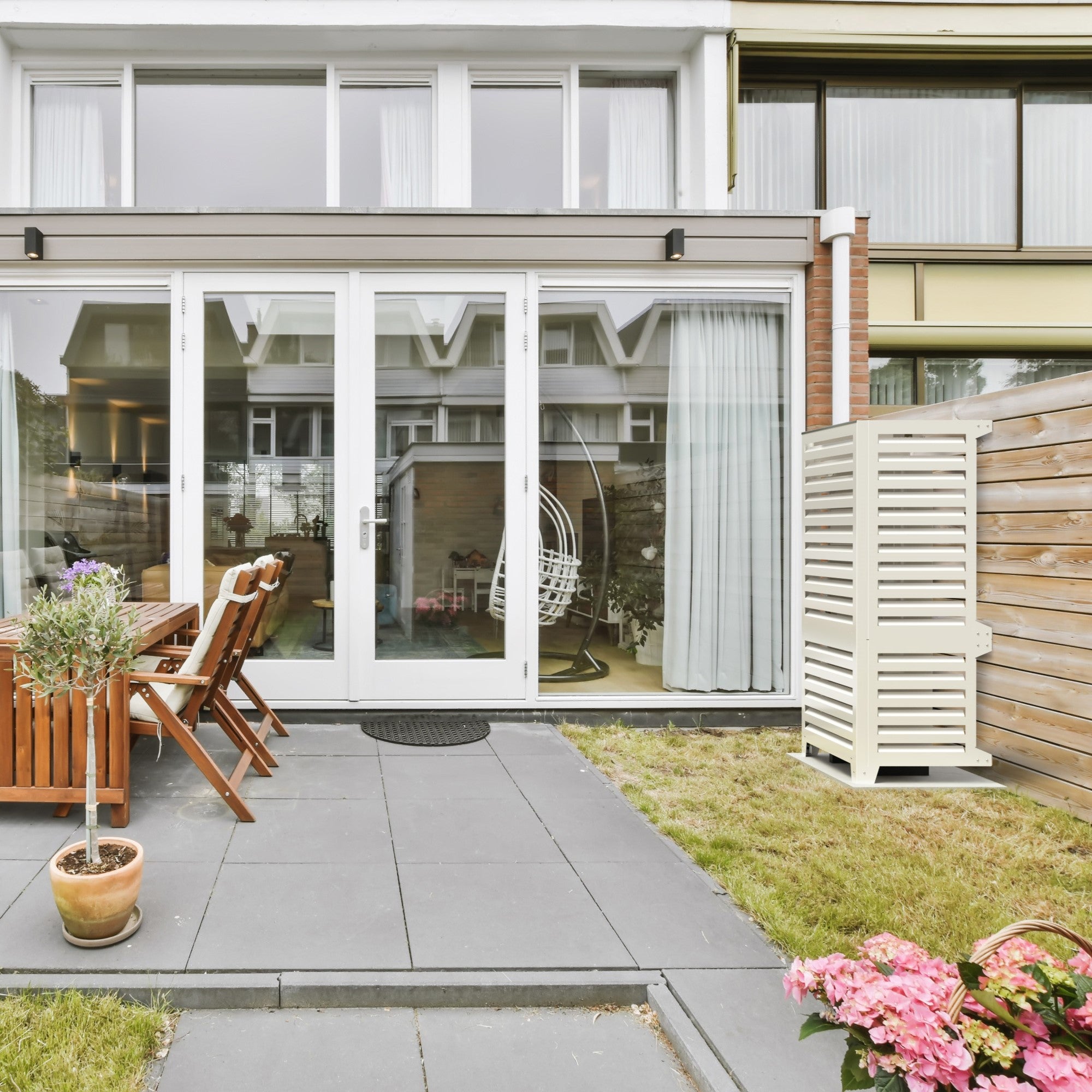

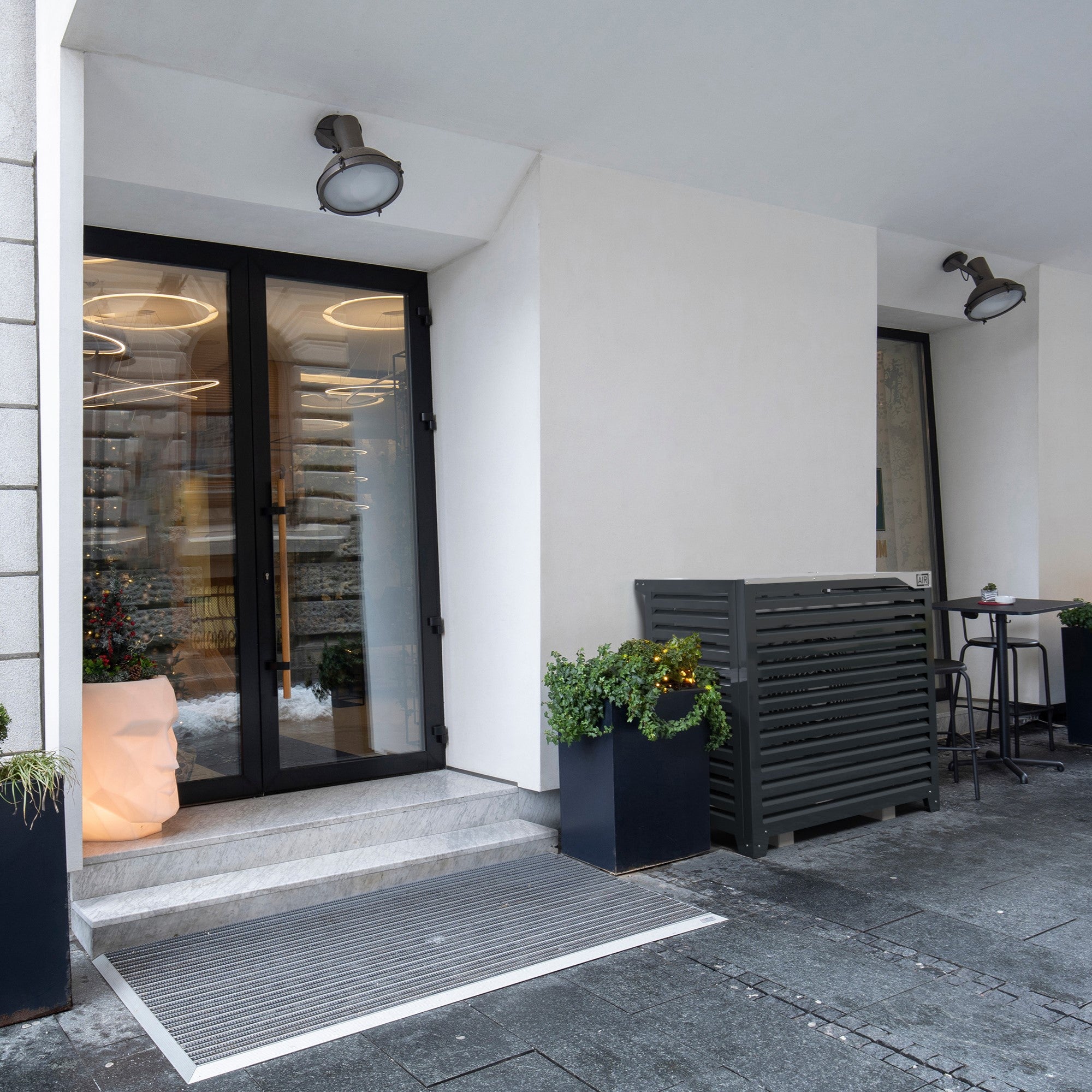

Need inspiration?
Whether you live in a city apartment or in a house surrounded by greenery, there is always a solution to integrate your heat pump elegantly. Browse these examples and get inspired by installations that transform the cover into a piece of furniture.
3 reasons why our cover makes the difference
For an outdoor unit that breathes better and lasts longer
Unlike many generic covers, our system is designed to protect the heat pump, not just hide it.
It blocks dust, leaves, and debris that would otherwise build up over time, reducing efficiency and increasing the need for maintenance — but it does so without compromising ventilation. Every detail of the design has been studied to work with the unit, respecting its natural airflow.
The fins distributed on all sides guide the hot air out, preventing harmful backflow toward the motor. The two upper slots, one at the back and one at the front, respectively allow fresh air in and hot air out. Finally, the entire structure is raised from the ground to promote circulation also from the base.
The peace of mind of solid protection, without adding weight
It not only protects against impacts and hail, but also makes rainy days quieter.
Our composite aluminum cladding is designed to provide real protection: light and durable over time. Two aluminum sheets enclose a rigid core that absorbs impacts and pressures without deforming: ideal against ball hits, garden tools, household work, as well as hail and wind-driven debris. To make your air conditioner last longer, reduce breakdowns, and say goodbye to frequent maintenance.
This structure acts as an acoustic shield: it protects the outdoor unit without overloading the bracket or wall, and reduces noise caused by wind and rain on the system, improving acoustic comfort inside and outside the house.
To prevent damage and inefficiency from heat, UV rays, rain, and frost
A cover that protects your investment over time from damage, inefficiency, extra costs, and future concerns.
Climate is the first enemy of your outdoor unit. UV rays degrade plastics and surfaces, direct sunlight raises its temperature reducing performance and increasing bills, rain causes rust and corrosion, while frost and snow stress seals and circuits. Humidity and thermal fluctuations also contribute, day after day, to the silent aging of the system.
Our cover acts as complete protection: it reflects heat, shields against ultraviolet rays, prevents water stagnation, and defends the unit from extreme weather conditions. This way you reduce breakdowns, prolonging the efficiency and lifespan of your system in every season.
The design that sets us apart across Europe
Every Box Air Klima cover is the result of a project that combines aesthetics, functionality, and real performance. It is not simply about “covering” a system, but about enhancing it, protecting it, and making it an integral part of the space.
This is why our design is officially registered with EUIPO, the European Union Intellectual Property Office. A recognition that certifies not only the unique style of our shapes but also the functional ingenuity of the project: clean lines, openings designed to favor natural ventilation, balanced volumes that protect without obstructing.
It’s not a detail: it’s the guarantee that behind every cover there is a precise idea, designed to last and to improve the user experience over time. A design that convinces at first sight and continues to do so every day, even after years of sun and rain.
FAQ
We answer the most common questions, straight to the point.
Is it true that if you don’t cover the heat pump, it can get damaged?
Yes, it’s written in the manual too. The heat pump is exposed daily to rain, hail, wind, dust, debris, UV rays, and frost. Without proper protection, these factors can cause premature wear, malfunctions, or loss of efficiency. A well-designed cover is a simple way to protect the unit and extend its lifespan.
How is it installed? Can I do it myself?
Installation is generally simple: the cover arrives pre-assembled, with a clear instruction manual and everything needed to assemble its parts. Heat pump covers are very bulky, so for a comfortable and safe installation we recommend having two people.
For wall mounting, the type of plugs and screws depends on the wall material (wood, concrete, insulation, ventilated wall…). In such cases, just ask your local hardware store for advice: they will recommend the most suitable fixings.
Does covering the heat pump reduce its efficiency?
On the contrary. Our covers are designed to protect without obstructing operation: the ventilation system is studied in every detail and is covered by registered design at EUIPO, ensuring optimal airflow.
In summer, shielding the unit from direct sun helps reduce overheating and improves efficiency at critical times. In windy or dusty environments, the structure helps keep filters and air grilles cleaner, maintaining a constant airflow. The balance between protection and airflow allows stable performance, fewer thermal fluctuations, and energy savings on bills.
How do I know if the cover is compatible with my heat pump?
On the product page you will find all internal and external dimensions. The available sizes cover most systems on the market. And if your heat pump is smaller? Then a cover for outdoor conditioners might be more suitable: in that case, check the dedicated page. For non-standard sizes, contact us: we also make custom configurations.
What if I need to access the heat pump for maintenance?
The cover is designed to be easily removable: you can unhook and lift it without dismantling anything. In just a few minutes, you have full access to the system without complications.
Is it possible to customize color or size?
Yes. All Box Air Klima covers can also be painted at home: in this case we recommend ordering the white version. For special orders or specific aesthetic needs, we offer customization on request: colors, finishes, non-standard sizes. Contact us to evaluate the best solution.
How does shipping work?
Shipping is free. We deliver across the European Community with selected couriers within 14 days, except in special cases. You will receive tracking as soon as the package leaves our warehouse.
Depending on the size, shipping is handled differently.
Ordering size VXL or 3XL?
The largest sizes (VXL and 3XL) are shipped fully assembled, ready to install — you just need to receive them properly: as bulky and heavy products, they are delivered on pallets with truck tail-lift unloading. Prepare for delivery as follows:
- Make sure you are present at delivery.
- Arrange for a second person to assist with moving.
- Ensure there is free and accessible space for unloading the pallet.
If no one is present when the courier arrives, a new delivery will be required, so it’s important to be ready.
Ordering size XL, XXL, or VL?
All other sizes are shipped partially assembled, in flat packs that are easy to handle. In this case, delivery is via standard courier. You will receive simple instructions to complete assembly yourself. Due to the size of the covers, we recommend having two people.
And what if the product doesn’t fit?
You have 14 days to return your product. Just contact us: we’ll guide you step by step. In case of our mistake or defects, replacement is free.
Don’t worry, we’ve got you covered — With our interactive guide, just answer a few questions to get the perfect match for your heat pump, with no risk of mistakes.
